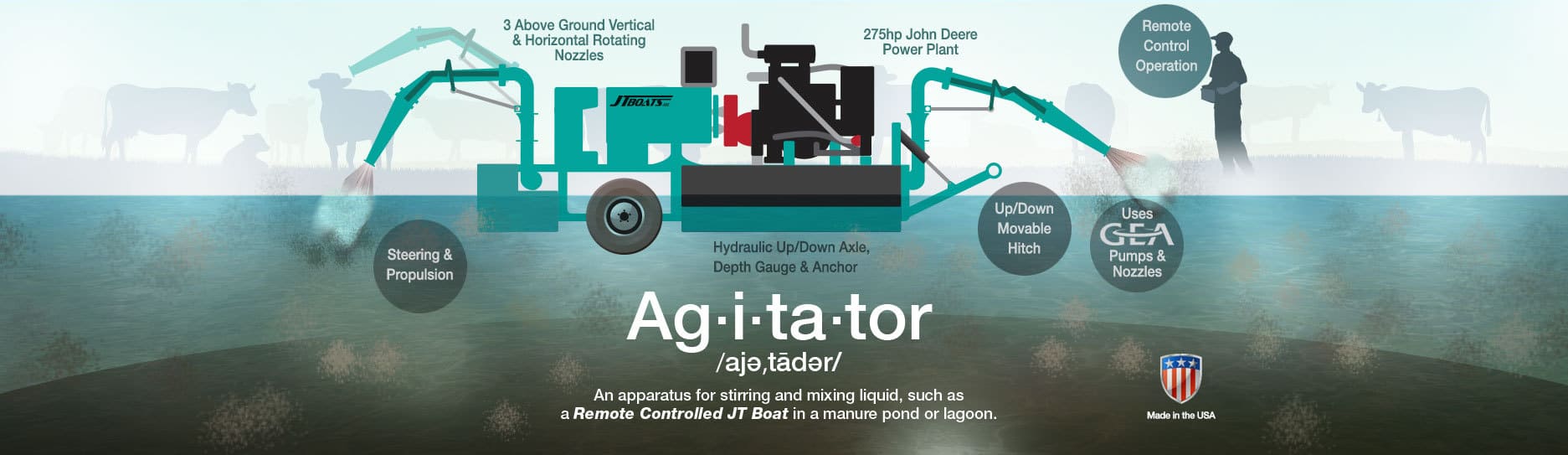

- Design built for maneuverability for exit and entry of manure lagoons.
- Provides durability in icy conditions.
- Up/down hydraulic wings.
- Up/down hydraulic hitch.
- Up/down hydraulic rear wheels.
- Hydraulic knife valve to shut off front nozzle when coming to shore.
- GEA Farm Technologies 8” super pump.
- 5 LED lights for nighttime use.
- Mark your (4) perimeter spots and START!

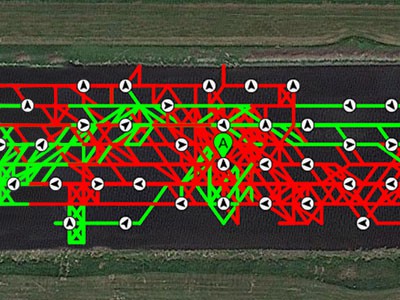

- Your JT Boat will automatically create its own path to completely cycle your pond
- GPS tracks boat’s movement and time of operation.
EATON TELEMATICS SOFTWARE
An additional add-on to your GPS system allows remote interaction with boat(s) and tracking.
JT Boat Joystick Control Box
JT Boat joystick control box is easy to operate. Operator can keep their eyes on the manure agitator, not the control box. With each nozzle having its own joystick, the boat can maneuver forward/backward, side-to-side, or circular motion at any time.
Front Wheel Kit Available
AR 500 Wearable Parts Upgrade
- AR 500 Housing
- AR 500 Lined Impeller
- AR 500 T
These products are proven to last up to 4x longer
|Width||Wings up: 8.5 ft. Wings down: 15 ft.|
|Engine||John Deere 6.8 Ltr. Tier IV 250 hp.
Fuel capacity: 125 gallons
|Centrifugal Pump||GEA 8″ super pump|
|Remote Control Functions||Engine start/stop
Engine throttle increase/decrease
Rear wheels raise/lower
View operating temperature
View engine oil pressure
View engine hours
View fuel gauge
|Agitation/ Nozzles||3 Rotating nozzles allow for forward/backward, side-to-side, or circular motion at any time.
Above ground nozzles allow user to spray down banks in lagoons.
Gate valve to shut front nozzles off when coming to shore.
|Hydraulic Hitch||Safely hook/unhook from tractor when backing up or retrieving boat from manure lagoon.
Also useful for braking ice in icy conditions.
|Hydraulic Wheels||Hydraulic wheels may go down to assist in getting in and out of manure lagoon.
“Depth finder” Hydraulic wheels may be used to find banked solids in manure lagoons.
May be used as an “anchor” in the manure lagoon in certain situations, such as docking boat for nighttime hours or washing down banks.
GPS Feature on a JT Manure Agitator Boat 1800 Serieshttps://www.manureagitators.com/ GPS Add-on feature on a JT Manure Agitator Boat 1800 Series. Owner Jamie Tews explains how to set up this GPS feature in a quick tutorial. GPS Add-on feature is available to purchase for previous models as well.
Drone Footage of a JT Manure Agitator Boat 1800 SeriesDrone footage of a JT Manure Agitator Boat. The JT Boat can be equipped with GPS guidance system. https://www.manureagitators.com/
GPS on a JT Manure Agitator Boat 1800 Series 30 Minute Time LapseGPS on a JT Manure Agitator Boat 1800 Series 30 Minute Time Lapse https://www.manureagitators.com/
1700 Series JT Boat bringing up solids from bottom of pithttps://www.manureagitators.com/ 1700 Series JT Boat's ability to point nozzles straight down allows the user to stay in one spot while penetrating the solids at bottom of lagoon. Notice the solids surfacing.
1700 Series JT Boat working in a pithttps://www.manureagitators.com/ The JT Manure Agitation Boat mixing up a corner of a plastic lined lagoon. Notice the volume of material being moved and the solids that it is breaking apart below the surface.
1700 Series JT Boat transferring solids across pit to load out pumphttps://www.manureagitators.com/ JT Boat's ability of efficiently mix solids on opposite side of pit and simultaneously position front nozzle to transfer solids towards load out pump. All this while continuing to keep your eyes on the boat and hands on the joystick controls.
1700 Series JT Boat entering a manure lagoonLaunching a 1700 Series JT Boat into pit with a plastic liner. Front hitch wheel kit is add-on feature. https://www.manureagitators.com/
JT Boat 1700 Series Boat in Actionmanureagitators.com
JT Boat 1700 Series. Manure Agitation done right!https://www.manureagitators.com/
Pulling a JT Boat 1700 Series out of a lagoonPulling a JT Boat 1700 Series out of a lagoon https://www.manureagitators.com/
JTBoats - Demolishing a Sandbarhttps://www.manureagitators.com/
JT Boats - Hooking and Unhookinghttps://www.manureagitators.com/
Problematic Conditions? No Problem! The JT Boat manure agitator has a clear cut advantage in these adverse conditions and more…
Thick Crust Conditions:
Simply direct nozzles above crust, soaking and breaking the stubborn crust up as it sinks and mixes into the slurry.
The JT Boat easily is able to move sand through pump and throw it out front nozzle, moving the sand pile across pit (to pump feeding drag lines or tanks).
Extreme force of liquids coming out nozzles breaks up ice, while the steel floats are able to withstand the wear and tear of floating ice chunks.
Extreme Sand Conditions:
The JT Boat quickly and efficiently gets to work, providing a slurry consistency that is similar to the first hour on the job, to the last.
